Batch & Continuous Mixing Systems from Pack Mfg.

1/2 yrd. Combo Mixer


1 yrd. Soil Mixer


2 yrd. Soil Mixer


3 yrd. Soil Mixer


4 yrd. Soil Mixer


In-Line Mixing System

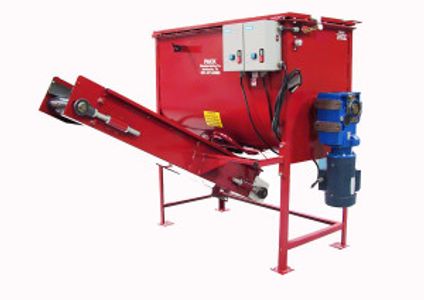

1/2 yrd. Batch Mixer or Combo Unit

 The batch mixer is designed for uniform blending of a wide variety of materials, such as peat, bark, soil, sand, chemicals and fertilizers. The ribbon blender channels material from the hopper sides through the center, resulting in a quick even blending and easy material removal through the center discharge hatch. The direct-drive power transmission is more efficient and eliminates the maintenance problems of chains and sprockets. The mixer comes with an integrated incline out feed conveyor that has a direct drive gear reduced motor and can be folded up out of the way when not in use.

Specifications:

  • 1/2 cubic yard hopper
  • 1/2 HP on blender
  • 1/2 HP on conveyor
  • ​220 VAC single or 3 phase



Features:

  • Direct drive power transmission
  • ​Magnetic motor start
  • Adjustable center dump
  • Spiral ribbon blender
  • Safety lid with auto cut-off



Options:

  • Casters and frame
  • Combo mixer package has mixer and conveyor (Requires 220V electricity)
  • Standard mixer
  • Heavy duty mix package
  • Potting table with foot pedal
  • Portable flat filler
  • Tow package

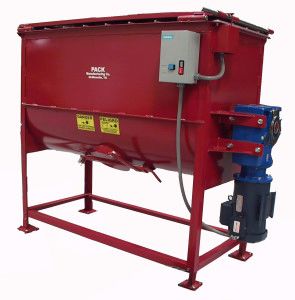

1 yrd. Batch Mixer and Combo Unit

The batch mixer is designed for uniform blending of a wide variety of materials, such as peat, bark, soil, sand, chemicals and fertilizers. The ribbon blender channels material from the hopper sides through the center, resulting in a quick even blending and easy material removal through the center discharge hatch. The direct-drive power transmission is more efficient and eliminates the maintenance problems of chains and sprockets.

Specifications:

  • 1 cubic yard hopper
  • 3 HP motor
  • 220 VAC, single or 3 phase

Options:

  • Heavy duty casters
  • Tow package
  • Heavy duty mix package
  • Incline conveyor attachment

Features:

  • Direct drive power transmission
  • Magnetic motor start
  • Adjustable center dump
  • Spiral ribbon blender
  • Safety lid with auto cut-off

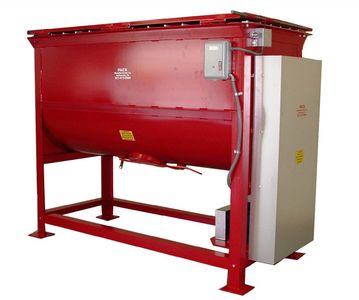

2 yrd. Batch Mixer

Additional Information

The batch mixer is designed for uniform blending of a wide variety of materials, such as peat, bark, soil, sand, chemicals and fertilizers. The ribbon blender channels material from the hopper sides through the center, resulting in a quick even blending and easy material removal through the center discharge hatch.

Specifications:

  • 2 cubic yard hopper
  • 7 1/2 HP on blender
  • 220 VAC single or 3 phase

Options:

  • 10 HP electric motor
  • Heavy duty casters
  • Tow package
  • Water bar

Features:

  • Heavy duty frame
  • Magnetic motor start
  • Adjustable center dump
  • Spiral ribbon blender
  • Safety lid with auto cut-off

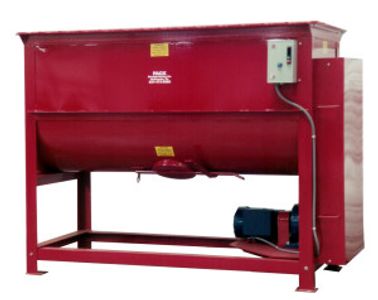

3 yrd. Batch Mixer

Additional Information

The batch mixer is designed for uniform blending of a wide variety of materials, such as peat, bark, soil, sand, chemicals and fertilizers. The ribbon blender channels material from the hopper sides through the center, resulting in a quick even blending and easy material removal through the center discharge hatch.

Specifications:

  • 3 cubic yard hopper
  • 10 HP on blender
  • 220 VAC single or 3 phase

Options:

  • 15 HP electric motor
  • Heavy duty casters
  • Tow package
  • Water bar

Features:

  • Direct drive power transmission
  • Magnetic motor start
  • Adjustable center dump
  • Spiral ribbon blender
  • Safety lid with auto cut-off

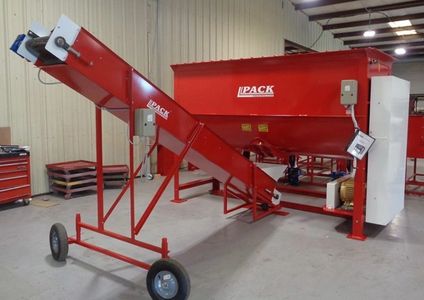

4 yrd. Batch Mixer

Additional Information

The batch mixer is designed for uniform blending of a wide variety of materials, such as peat, bark, soil, sand, chemicals and fertilizers. The ribbon blender channels material from the hopper sides through the center, resulting in a quick even blending and easy material removal through the center discharge hatch.

Specifications:

  • 4 cubic yard hopper
  • 15 HP on blender
  • 220 VAC single or 3 phase

Options:

  • 20 HP electric motor
  • Heavy duty casters
  • Tow package
  • Water bar

Features:

  • Direct drive power transmission
  • Magnetic motor start
  • Adjustable center dump
  • Spiral ribbon blender
  • Safety lid with auto cut-off

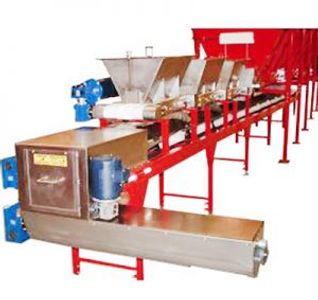

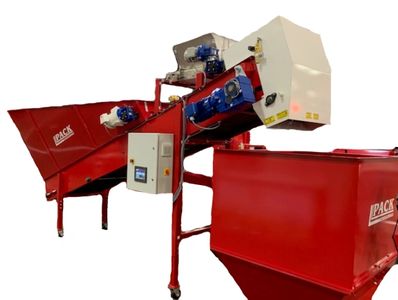

In-Line Soil Mixing System

Our custom built soil mixing systems are built to fit your companies need for continuous or batch mixing. Our state of the art soil mixing equipment with 10 gauge painted steel bulk commodity hoppers and stainless steel amendment hoppers allow the raw materials to be precisely metered onto a v-roller conveyor that is controlled by a PLC. The PLC is capable of storing multiple recipes. Soil can be mixed in continuous or batch mixes. All hoppers are direct drive with sealed bearings.

Features:

  • Optional computer controlled recipe blending
  • Direct drive inverter duty motors standard
  • Control system designed for integration with peat bale processors and multiple production lines
  • Color touch screen operator interface panel

Chemical hoppers:

  • Low level sensors in each hopper
  • Stainless steel construction
  • Double gear reduction for precise chemical ratio

Soil output:

  • 10-120 yards per hour
  • Custom designed to match your needs

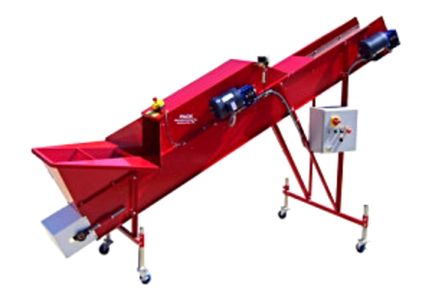

Soil mixing conveyor:

  • Self tracking belt with low friction v rollers integrates with soil processing attachment

Electrical requirements:

  • 208/230 VAC, 3 phase

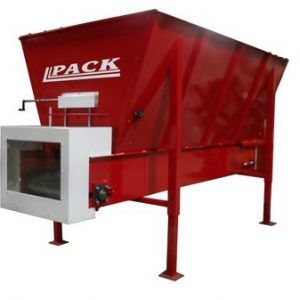

Bulk hoppers:

  • 10 gauge steel construction
  • Low level sensors in each hopper stainless steel option for covers and chutes

In-Line Soil mixing System
