Material Handling Systems

 Click on an image to see additional information

Material Handling Systems

Buffer Belt Systems

Container Transfer Systems

Container Transfer Systems

Buffer belts

The Willburg Pot Buffer Belt or Pot Collation System is made to suit your potting area, (Custom made to measure – width and length). This increases the efficiency of the whole line, allowing smooth flow of pot material, handled normally by a single operator, saving time, money and effort

Container Transfer Systems

Container Transfer Systems

Container Transfer Systems

singulation belts container transfer belts

The pots or trays are moved into a single line and the work is done at a belt.  When sorting at a belt, you can do the work much faster, the sorting is done better and ergonomically, it is better to work this way.  Also other work is smoother and can, if required, be done by machines: labelling, blowing out, washing of pots, trimming,

Trailer Loading Systems

Container Transfer Systems

Trailer Loading Systems

Trailer loading systems

This special push-over system pushes the pots from the built-in belt conveyor onto the transport trailers with which the pots are then removed by transport forks or by hand. The transport trailers are automatically driven by a floor-mounted system of chains.

Conveyors

Transport Forks

Trailer Loading Systems

Conveyor belts to transport pots and flats

Willburg Projecten supplies conveyors for various applications organized conveyors, whether it's pots, trays, crates, boxes

Transport Forks

Transport Forks

Transport Forks

Transport forks for pots and trays

Our forks are used for transporting large quantities of plants from one place to another. All forks are custom built to your plant container specifications. Hort Tech Systems, works with you to decide on the quantity that can and needs to be picked-up per lift on a standard forklift.

Watering Tunnel

Transport Forks

Transport Forks


The Willburg Projecten watering unit equipped with 4 sprinkler heads, each controlled by an electronic cell. Each pot passing in front of a cell is watered by the corresponding sprinkler head. The watering duration is programmable.

Water Chamber

Accumulator Table

Dibble Conveyors


The Pack Manufacturing PM1090-15D Water Tunnel is smart watering system capable of being incorporated into any horticultural application. The PM1090-15D is constructed of stainless steel with a polycarbonate hood. It is designed to provide controlled watering capability for almost any style container. The PM1090-15D not only ensures an even water distribution among plants but also prevents overwatering and water waste by controlling the water flow. The Water Tunnel can be wired into a larger production line or used as a staging line for watering prior to loading onto trucks.

Dibble Conveyors

Accumulator Table

Dibble Conveyors

Dibble conveyor for flats

The Pack Manufacturing Dibble Conveyor is a must for your production planting. With its user friendly control panel and adjustments setup is fast and easy. This machine has an photo eye that triggers a cylinder to stop the tray into position while dibbling in one continuous and reliable motion. This machine can be fitted with many different configuration dibble plates custom to your particular situation.

Accumulator Table

Accumulator Table

Accumulator Table

accumulator table for pots

The Pack Manufacturing Accumulator Table has a lightweight aluminum table that stays smooth and easy to clean.

Tracking Trailers

Tracking Trailers

Accumulator Table

tracking trailers

Pack Manufacturing Tracking Wagons are our highly affordable solution to field mobility. Whether transporting labor, products, or equipment, a Pack Manufacturing Tracking Wagon will be up to the task. Our Tracking Wagon series varies greatly depending on need and application, but all Pack Manufacturing wagon lines are built with a heavy-duty angle iron frame and a flattened expanded metal bed. Our Tracking Wagons are built to hold up under extreme conditions and made to last a lifetime.

Incline Conveyors

Tracking Trailers

Incline Conveyors

Soil conveyors, soil elevators

All V-Roller Conveyors are built with self tracking belts and sealed bearings to help eliminate machine failure and down time. Direct drive gearboxes are used instead of chain and sprockets to minimize the chances of problems. Pack Manufacturing conveyors are finished with custom hoppers and end dump chutes to fit your needs.

Destackers

Tracking Trailers

Incline Conveyors

Destackers for pots and trays

Destackers for all types of carrier trays, propagation flats, shuttle trays, pots and packs

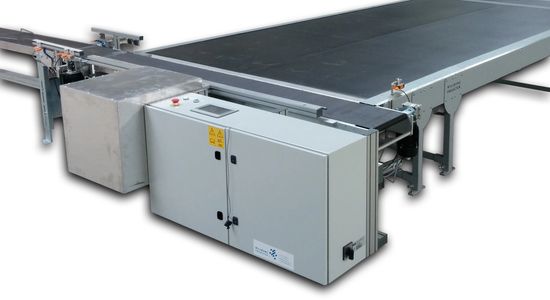

Buffer Belt Pushover Systems

The Willburg buffer / wide belt system is designed to collect flats or pots so they can be picked up and moved with a set of transport forks to the area where they are to be nested. This increases the efficiency of the whole line, allowing smooth flow of pot material, handled normally by a single operator, saving time, money and effort. The system can be designed to fit the customer needs for length up 40 feet by 6 feet 6 inches wide.

The buffer conveyor belt is stopped from running when pots are removed from the belt with the transport/ spacing forks and if the belt is completely filled with pots by means of an electric eye. The complete frame is powder coated and the surface on which the conveyor belt is running is made of steel. The mechanical push-over unit pushes the pots over from the built in positioning conveyor onto the wide conveyor belt. The displacement of the wide belt is measured by an encoder on the drive shaft (this assures exact measuring). By using the keyboard (PLC touch screen) you can change the pot size to another pot size. Also you have the ability to space your container plants on the wide belt. In the PLC you can store 20 different programs.


 Product Features:

  • Available in several dimensions according to your needs
  • Can be used as a buffer in production
  • Heavy duty steel frame with powder coating
  • Large collector belt with pusher
  • Photo cell to stop belt when plants removed by transport forks
  • Pot size selected via touch screen with push-over system for most pot sizes
  • Programmable to suit your needs, stores up to 25 programs
  • Proven to significantly increase efficiency
  • Short conveyor is mounted in front of the buffer belt to place the pots at the desired spacing
  • Speed ​​adjustable by electronic frequency
  • Straight, staggered, or spaced pot lay out on the wide belt
  • Suitable for round pots, square pots and trays
  • Up to 6000 pots per hour (depending on pot size)

Container Transfer System

The Willburg buffer / wide belt pot transfer system is designed to separate flats or pots so they can be graded processed through an inline trimmer, fertilized, or spaced and moved with a set of transport forks to the area where they are to be nested. This increases the efficiency of the whole line, allowing smooth flow of potted material, handled normally by a single operator, saving time, money and effort. The system can be designed to fit the customer needs for length up 40 feet by 6 feet 6 inches wide.

The buffer conveyor belt is stopped from running when pots are added to the belt with the transport/ spacing forks and if the belt is completely filled with pots by means of an electric eye. The complete frame is powder coated and the surface on which the conveyor belt is running is made of steel. The pot transfer system uses a set of rollers to separate the pots or flats and transfer them to a conveyor belt. The displacement of the wide belt is measured by an encoder on the drive shaft (this assures exact measuring). By using the keyboard (PLC touch screen) you can change the pot size to another pot size.


 Product Features:

  • Practical designed delivery buffer belt
  • Suitable for round pots, square pots and trays
  • The pots are singulated by the driven rollers for the conveyor belt
  • Up to 3.500 pots per hour (depending on pot size)
  • Universal for various pot sizes

Available accessories:

  • Conveyor
  • Pots Counter
  • Belt Curve

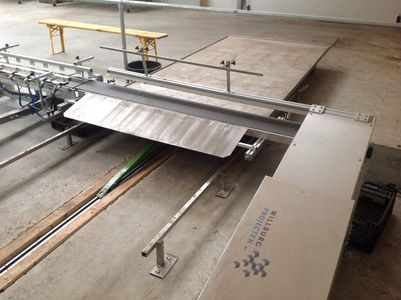

Willburg Trailer Loading System

This special push-over system pushes the pots from the built-in belt conveyor onto the transport trailers with which the pots are then removed by transport forks or by hand. The transport trailers are automatically driven by a floor-mounted system of chains. A large display allows setting of the required size of pot, with 25 preset programs. The pusher is mechanical, i.e. the pusher arm is easy to adjust and increases safety, featuring a 2 m belt conveyor and an upstream accumulator. Thanks to an extensive assortment of accessories we are in a position to offer you customized solutions for special purposes.


Product Features:

  • Pot size selected via touch screen
  • Suitable for round pots, square pots and trays
  • The plants can be spaced on the trailer
  • Universal push-over system for most pot sizes

Product Specifications:

  • 240 volts 3 phase (60 Hz)
  • Adjustable Support for fixed mounting on floor
  • Chain track starter kit
  • Cross conveyor belt 25 cm wide
  • Drive unit with gear motor and adjusting side to move the trailers.
  • Frequency control for conveyors

Willburg Conveyors

Willburg Projecten BV supplies for various applications organized conveyors, whether it's pots, trays, crates, boxes, Christmas arrangements, it does not matter. For all products we can supply the right conveyor belts. The conveyor belt is bridged with a length of 6 meters with a fixed or an adjustable speed. There are various widths of the conveyor belt stock. The conveyor belts can be provided as an engine part as well as by the coupling part.


Product Features:

  • Width 6¹¹/₁₆” / 8¼” / 9⅝: / 11¹³/₁₆” / 17¾”
  • Motors ¼ , ¹/₃, ¾, 1 hp
  • Fixed or variable speed
  • Also with Power Drive system
  • Strong but light aluminium frame

Available accessories:

  • Various kinds of tire support
  • Pots Counter
  • Turntable
  • Various corners of pots
  • Belt Curve
  • Inside Curve
  • Remote

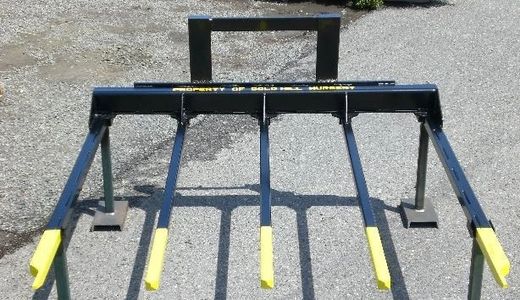

Transport Forks

Our forks are used for transporting large quantities of plants from one place to another. All forks are custom built to your plant container specifications. Hort Tech Systems, works with you to decide on the quantity that can and needs to be picked-up per lift on a standard forklift. These forks have very quick return on investment along with many intrinsic values to your employees


 Features:

  • Available sizes for flats to 25 gallon containers
  • Centering pin fixed for fork alignment on the mast
  • Connects easily to a mast on the forklift
  • Custom made to your injection molded containers
  • Use for setting containers in bedded rows
  • Use to load trucks

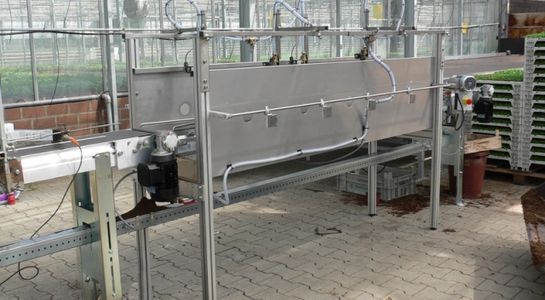

Willburg Projecten Watering Tunnel

The Willburg Projecten watering unit equipped with 4 sprinkler heads, each controlled by an electronic cell. Each pot passing in front of a cell is watered by the corresponding sprinkler head. The watering duration is programmable.


  • 4 individually controlled nozzles.
  • Amount of water is adjustable.
  • Compatible with all conveyors brands.
  • For round and square pots.
  • Includes water collector.
  • Mess free system.
  • The plants can be provided during the molding process to be set in an amount of water by means of a control panel on the control box.

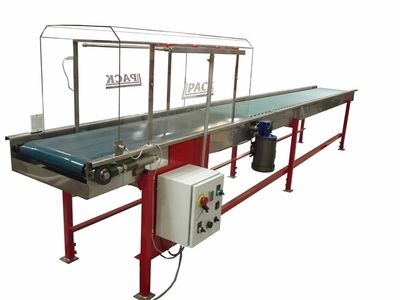

PM 1090-15D Water Chamber

The Pack Manufacturing PM1090-15D Water Tunnel is smart watering system capable of being incorporated into any horticultural application. The PM1090-15D is constructed of stainless steel with a polycarbonate hood. It is designed to provide controlled watering capability for almost any style container. The PM1090-15D not only ensures an even water distribution among plants but also prevents overwatering and water waste by controlling the water flow. The Water Tunnel can be wired into a larger production line or used as a staging line for watering prior to loading onto trucks. The Pack Manufacturing PM1090-15D comes equipped with an aluminum frame conveyor with PVC rollers and stainless bearings for smooth, trouble-free service. Extra wide, extra tall, and hanging basket options are available to accommodate the largest containers.


  • 5’ X 16” Conveyor
  • 4’ X Water Chamber
  • 15’ Overall W/10’ Drain Pan
  • 10’ Roller Conveyor
  • 102V AC Input
  • Direct Drive Power Transmission
  • Variable Speed Drive
  • Spring Loaded Take-Ups
  • Stainless Steel Bed & Rollers
  • CNC Machined Watering Bars

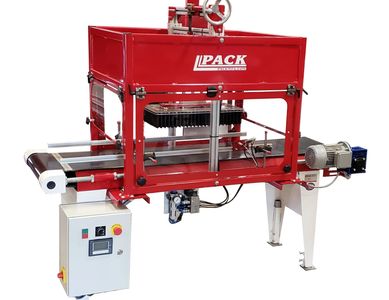

Dibble Conveyors

The Pack Manufacturing Dibble Conveyor is a must for your production planting. With its user friendly control panel and adjustments setup is fast and easy. This machine has an photo eye that triggers a cylinder to stop the tray into position while dibbling in one continuous and reliable motion. This machine can be fitted with many different configuration dibble plates custom to your particular situation.


  • 120V Electrical
  • 5.6 Amps
  • Air Pressure Max 40 PSI
  • Productions Varies
  • Self-Contained System
  • 110 V Direct Drive Conveyors
  • Auto Stop with Sensor
  • Air Pressure Control & Regulator

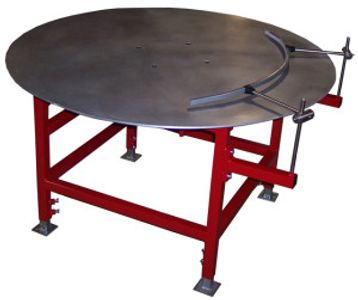

Accumulator Table

The Pack Manufacturing Accumulator Table has a lightweight aluminum table that stays smooth and easy to clean.


  • Adjustable height
  • Direct drive transmissions
  • Solid steel frame with aluminum top
  • Standard 120 V plug
  • Variable speed control

Tracking Trailers

Pack Manufacturing Tracking Wagons are our highly affordable solution to field mobility. Whether transporting labor, products, or equipment, a Pack Manufacturing Tracking Wagon will be up to the task. Our Tracking Wagon series varies greatly depending on need and application, but all Pack Manufacturing wagon lines are built with a heavy-duty angle iron frame and a flattened expanded metal bed. Our Tracking Wagons are built to hold up under extreme conditions and made to last a lifetime.


 Tracking Trailer Standard Sizes:

  • 4' x 8'
  • 4' x 10'
  • 5' x 10'
  • 6' x 12'

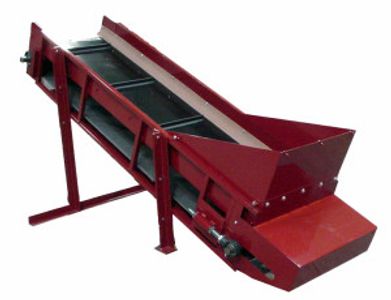

Incline Conveyors

  All V-Roller Conveyors are built with self tracking belts and sealed bearings to help eliminate machine failure and down time. Direct drive gearboxes are used instead of chain and sprockets to minimize the chances of problems. Pack Manufacturing conveyors are finished with custom hoppers and end dump chutes to fit your needs.



Types of Conveyors

  • Standard and custom incline conveyors
  • Cleated belt conveyors
  • Troughing conveyors
  • Standard and custom flat conveyors
  • Overhead conveyors
  • Custom designed conveyors


 Features

  • Direct drive
  • Self aligning belts
  • Rigid construction
  • Sealed bearings
  • Custom or standard hoppers
  • Custom or standard chutes

Destacking systems

Pack Mfg. Tray Destacker

Destacking Pots in Shuttle Trays

Pack Mfg. Tray Destacker

Tray Destacker

 The Pack Manufacturing Tray Destacker with Conveyor is a great addition to your production  planting. With its user friendly control panel and adjustments, setup is fast and easy. This machine has PLC controls with a photo eye to assure precision movements for unstacking trays to keep up with any filling system.



Destacking of Trays

Destacking Pots in Shuttle Trays

Pack Mfg. Tray Destacker

Tray Destacker

 Almost all common plant trays can now be destacked with Demtec’s simple DTC10 destacker.  It is a universal equipment that can easily handle a large range of trays.  If required, we provide customized knives to destack more specific trays.  Our destacker for recuperation trays helps with the really difficult to destack trays.

Destacking Pots in Shuttle Trays

Destacking Pots in Shuttle Trays

Destacking Pots in Shuttle Trays

pot destacker for shuttle trays

 The destacking of pots in shuttle trays (trays whereof the upper edge of the tray is at the same height as the pot edge) is done without stopping the tray.  The pot is put into the tray while the tray moves underneath.  This way, high speeds can be reached.  This simple technique is extremely time saving.  Moreover this destacking belt can easily be converted into another pot/tray combination. Demtec has a lot of experience with various pots and trays.

Destacking Pots in Carrier Trays

Destacking Pots in Carrier Trays

Destacking Pots in Shuttle Trays

single row pot destacker

 An increasing number of plants is cultivated in carrier trays.  Tray cultivation has many logistic advantages.  Demtec developed a quick destacking line that can be installed before the filling line.  This PLC-controlled machine has various programmes and is designed in accordance to your needs.  We provide all types of trays of all kinds of pots, completely filled or placed in pattern.   Moreover, you are never stuck with a certain tray or pot size.  The line can quickly be modified for other assignments.

Destacking Liners in Trays

Destacking Pots in Carrier Trays

Destacking Liners in Trays

Liner tray destacker

 Destacking of liners in baskets or trays requires a special technique.  The liners just fit into the basket, therefore the entire pack is placed in one movement.  Demtec has developed an easily adjustable and universal destacker that can be used for all pot sizes.  The number of pots that is destacked can be set variably.  An essential automation for those using this cultivation method.

Destacking of Crates

Destacking Pots in Carrier Trays

Destacking Liners in Trays

Crate destacker

 Traditional plant cultivation crates for soil blocks can very quickly be destacked (or stacked) using a demtec destacker.  The destacker uses the simple principle of 2 ‘hands’ lifting the stack and remove the lower crate.  This tested method is applied for all crate heights, for random stacking heights and for various applications (blocking lines, wash lines, etc.).  A single acting destacker has a maximum capacity of 750 crates/hour, a double acting one deals with a maximum of 1,000 crates/hour.

 See something that you would like more information on give us a call 503.628.3059
